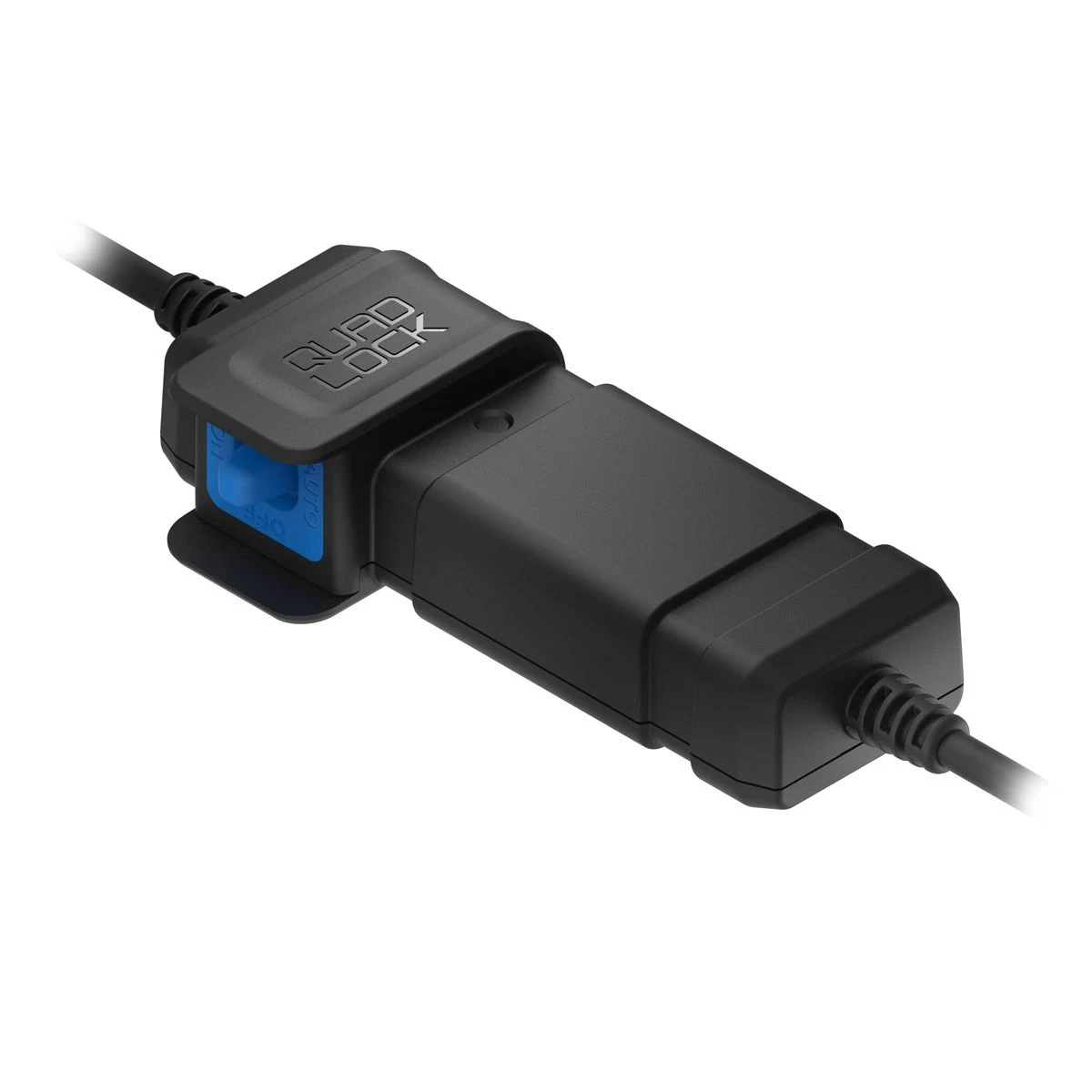

QUAD LOCK WATERPROOF 12V TO USB SMART ADAPTOR

The Quad Lock® Waterproof 12V to USB Smart Adaptor comes with everything needed to power your Quad Lock® Weatherproof Wireless Charging Head from your motorcycle, boat or caravan, or simply allow USB power for other devices.

The Smart Adaptor has three modes that are easy to toggle between – On, Off, and Auto. Use On when connecting the Smart Adaptor to constant 12V – 24V supply, such as your boat or caravan, while the Auto function is designed to keep the device off until input voltage rises above 13.5V, then turn off when input voltage drops below 12.5V so you can avoid battery drain on your motorcycle or ATV.

Reverse Polarity Protection saves your battery in the instance the Ring Terminal Cables are connected to the incorrect battery terminals, and the in-line 3A rated fast blow fuse protects from battery drain in the rare case of a fault.

• Waterproof 12V to USB Smart Adaptor
• Multiple switching states
• Reverse Polarity Protection
• In-line Safety Fuse

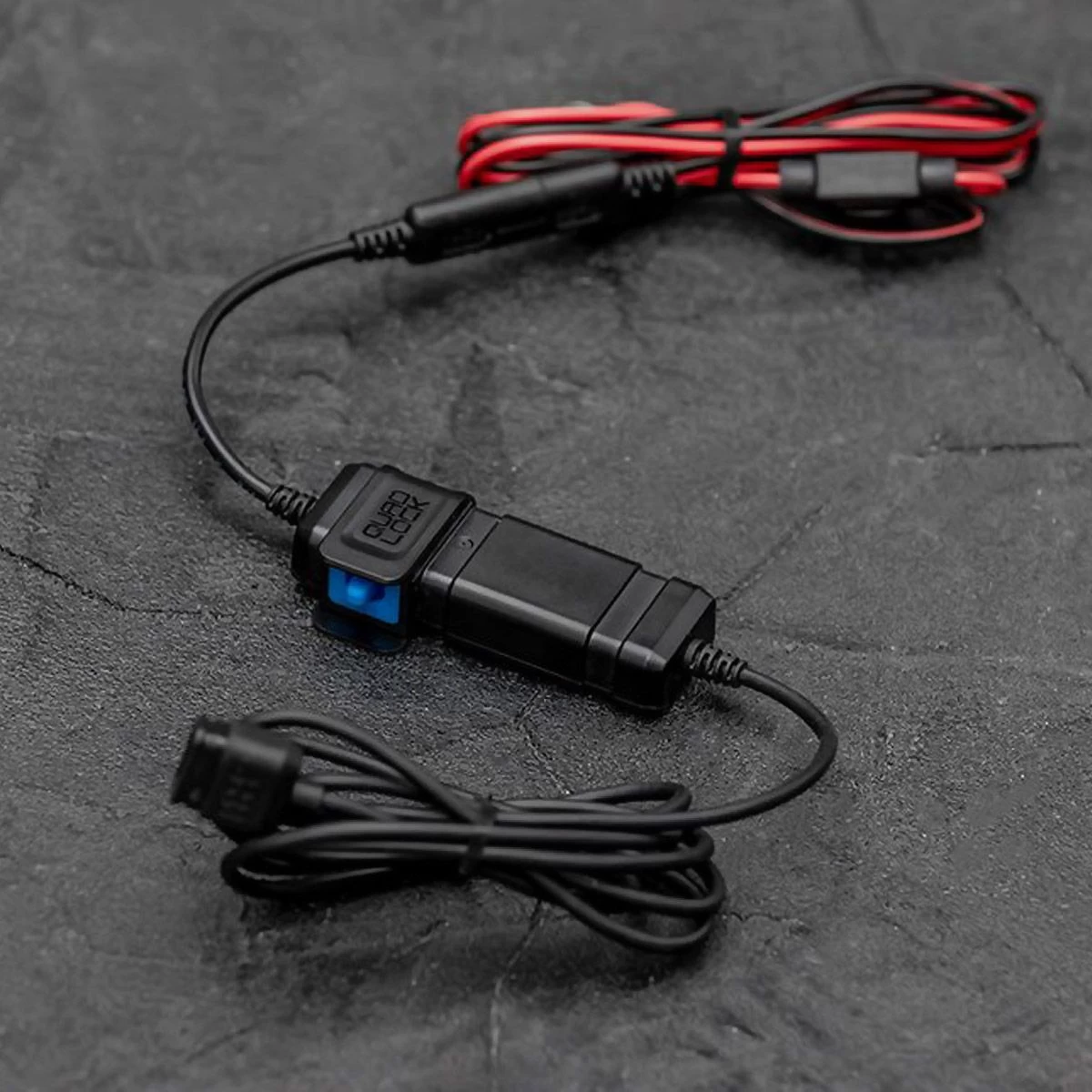

WHAT’S INCLUDED:

• 1 x Quad Lock® Waterproof 12V to USB Smart Adaptor with 1.5M USB-A female port and 10cm SAE cable hard wired
• 1 x 1M SAE to ring terminal cable with an in-line fuse
• 1 x USB-A sealing boot for USB-A to USB-C cable supplied with Weatherproof Wireless Charging Head
• 5 x Zip ties
• Output: USB-A up to 18W max (5V/3A, 9V/2A, 12V/1.5A)
• Input: 12V – 24V DC
• Auto switching mode provides power only when engine is running to avoid battery drain
• Reverse polarity protection
• In-line safety fuse
• Waterproof 12V to USB Smart Adaptor housing made from polycarbonate construction
• TPU Toggle Switch
• PVC cables, SAE, USB-A and Ring Terminals over-moulds
• Brass Ring Terminals
• IP66 rated Waterproof 12V to USB Smart Adaptor unit and cable housing
• IP64 rated USB seal boot cover
• Weatherproof Charging Head not included
